JSON Web Key

⚡ 3 min read

Generate JSON Web Keys (JWK) for backend server-side JWT verification with ES256 algorithm

What the JSON Web Key Panel Does

Automatically generate JWK (JSON Web Keys) for backend server-side verification. Supports ES256 algorithm (ECDSA P-256) with secure key storage for seamless integration with your authentication backend

Panel features:

  • Generate public keys for JWT verification
  • Private key securely stored in Transcodes.io cloud
  • Public key returned once - store it securely
  • Previous public key invalidated when generating new key

The public key cannot be retrieved again after generation. Always save it immediately

Prerequisites

  • Backend server that verifies JWT tokens

Opening the JSON Web Key Panel

  1. Log in to Transcodes Console
  2. Open your project
  3. Locate the Authentication Kit Cluster
  4. Click the key icon (🔑) labeled “JSON Web Key”
  5. The panel opens on the right side

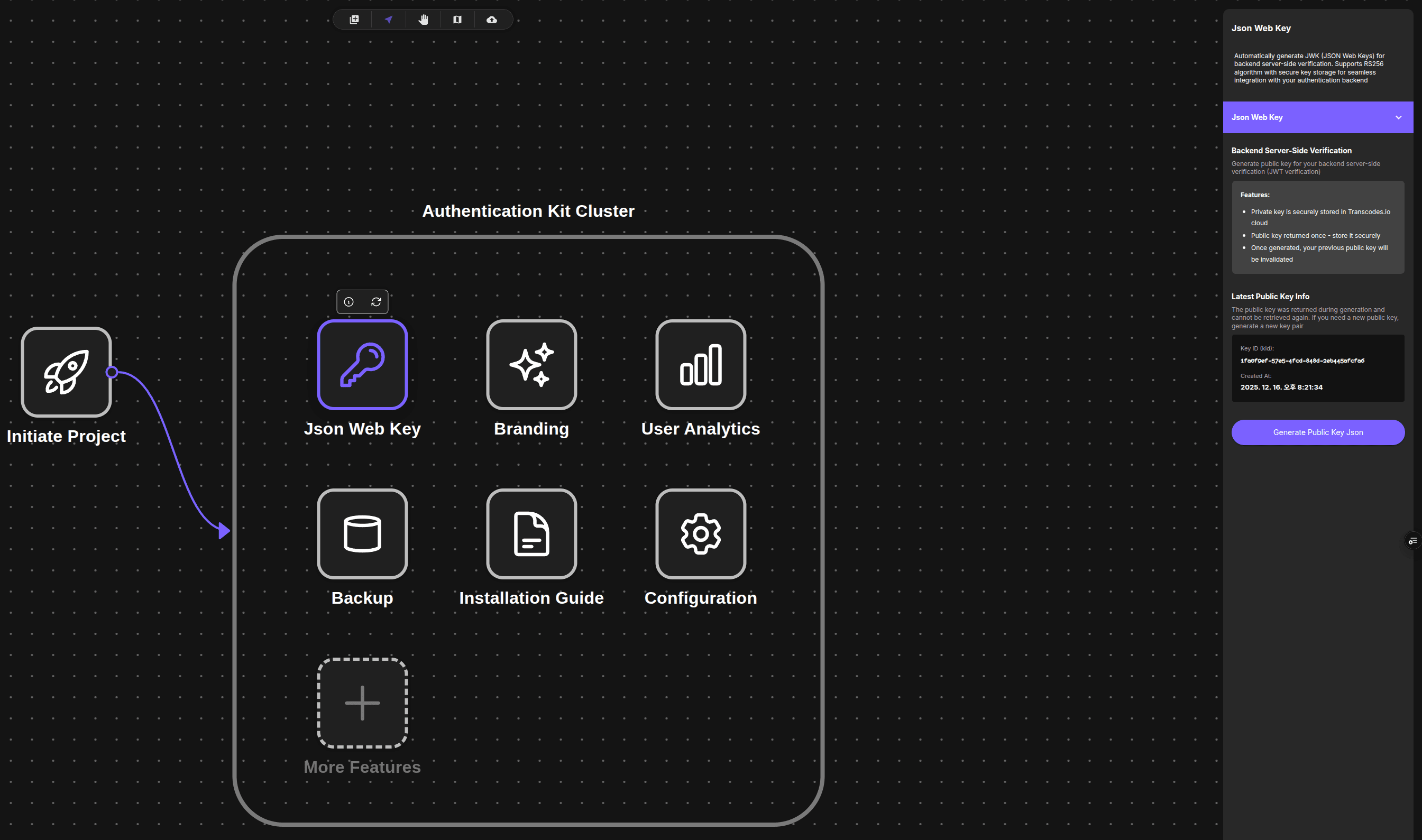

JSON Web Key Panel

The JSON Web Key panel appears on the right with a purple “Json Web Key” accordion section

Generating a Public Key

The JSON Web Key panel contains fields for generating and viewing your public key information

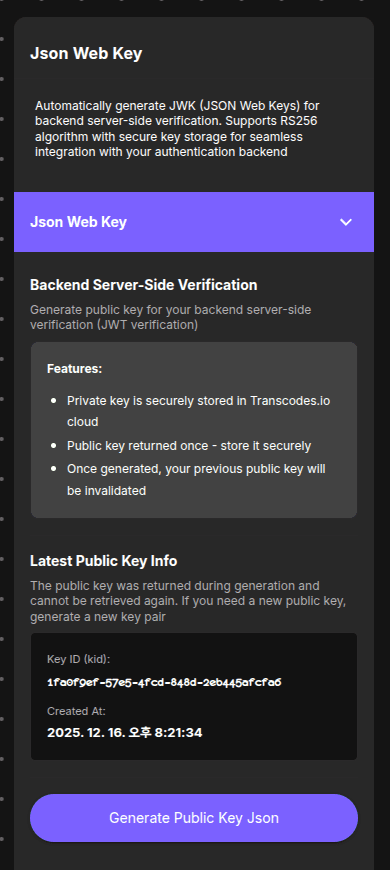

JSON Web Key Panel Details

The panel shows:

  • Backend Server-Side Verification: Description of public key purpose
  • Features: Security information about key storage and invalidation
  • Latest Public Key Info: Key ID (kid) and creation timestamp
  • Generate Public Key JSON button

1. View Existing Key Info

The Latest Public Key Info section displays:

  • Key ID (kid): Unique identifier (e.g., 1fdef9ef-57e5-4fcd-84bd-2eb445efcf66)
  • Created At: Generation timestamp (e.g., 2025-12-16T20:21:34Z)

The public key content cannot be retrieved again. It was shown only once during generation

2. Generate New Key

To generate a new key:

  1. Click the Generate Public Key JSON button
  2. If a key exists, confirm you want to invalidate the previous key
  3. The public key appears in JSON format
  4. Copy or download the key immediately

Generating a new key invalidates your previous public key. Update your backend before generating a new key

Server-Side Verification

Never trust client-side token validation alone. Always verify tokens on your server using the public key from the JSON Web Key panel

Verification Checklist

When verifying JWT tokens from Transcodes:

CheckWhat to Verify
SignatureValidate using Transcodes public key (ES256)
Issuer (iss)Must be <YOUR_API_URL>
Audience (aud)Must match your Project ID
Expiration (exp)Must be in the future

Example (Node.js)

const jwt = require('jsonwebtoken');

const decoded = jwt.verify(token, TRANSCODES_PUBLIC_KEY, {
  algorithms: ['ES256'],
  issuer: '<YOUR_API_URL>',
  audience: 'YOUR_PROJECT_ID',
});

Transcodes uses ES256 (ECDSA with P-256 curve) for JWT signing. The public key is an EC key in JWK format. ES256 offers equivalent security to RSA-2048 with smaller key sizes and faster verification

What to do next?

After setting up JWK verification:

  1. Configure token expiration settings
  2. Monitor user authentication activity
  3. Review Security for security best practices
  4. Explore Token API documentation
